THROTTLE & E BRAKE & SWITCHE
THROTTLE & E BRAKE & SWITCHE
Throttle
E brake
Switch

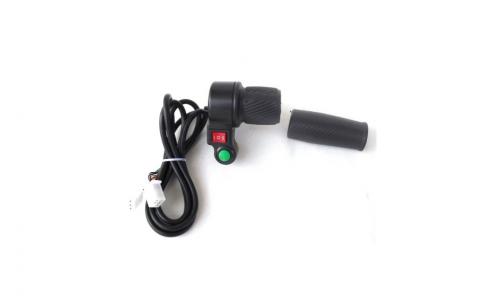

HALF TWIST THROTTLE WITH 3 SPEED AND CRUISE

Half Twist Throttle with integrated 3 speed switch and cruise push-button (can be used for any function requiring a momentary contact).

• Typical hall sensor throttle.
• 3 speed switch.
• Momentary contact push-button, can be used for a variety of functions, but is used for Cruise activation on kits
Note: cruise is a function of the controller which is activated by the throttle push-button, it will not have this function unless the controller is suitably equipped and with the correct connections. Standard Connection is to our Infineon Controller, or there is the option to have CA3 Connection (including resistors in 3 position switch).

FULL TWIST THROTTLE WITH 3 SPEED AND CRUISE
Full Twist Throttle with integrated 3 speed switch and cruise push-button (can be used for any function requiring a momentary contact).
• Typical hall sensor throttle.
• 3 speed switch.
• Momentary contact push-button, can be used for a variety of functions, but is used for Cruise activation on kits
Note: cruise is a function of the controller which is activated by the throttle push-button, it will not have this function unless the controller is suitably equipped and with the correct connections. Standrad Connection is to our Infineon Controller, or there is the option to have CA3 Connection (including resistors in 3 position switch)

THUMB THROTTLE WITH 3SP SWITCH FOR INFINEON
Simple and compact Thumb Throttle which along with the separate 3 speed switch and power switch enables throttle, 3 speed, cruise and power on/off control on our Infineon controllers.
When this throttle is used with our Infineon Controllers, it really should be combined with the 3 speed Switch and also the Power Switch. If you do not use the 3 speed switch or link the necessary connectors, the controller will be fixed to speed 2 only. It is also strongly recommended that the Bar mounted power switch is used as the spare push button on the power switch is then used for Cruise enable.  If the cruise function is used, it is also strongly recommended  that some form of ebrake is used as this kills the cruise. Without some way to kill the cruise function, it could cause a serious safety issue in an emergency.

RIGHT THUMB THROTTLE (TYPE 1)
Simple and compact Thumb Throttle.
Simple and compact Thumb Throttle which along with the separate 3 speed switch and power switch enables throttle, 3 speed, cruise and power on/off control on our Infineon controllers.
When this throttle is used with our Infineon Controllers, it really should be combined with the 3 speed Switch and also the Power Switch. If you do not use the 3 speed switch or link the necessary connectors, the controller will be fixed to speed 2 only. It is also strongly recommended that the Bar mounted power switch is used as the spare push button on the power switch is then used for Cruise enable.  If the cruise function is used, it is also strongly recommended  that some form of ebrake is used as this kills the cruise. Without some way to kill the cruise function, it could cause a serious safety issue in an emergency.

LEFT HALF TWIST THROTTLE
This model is intended for installation on the left side of the handlebars, it is fitted with a matching plug for the BBS02 Kit, or SM3 to the CA3.

RIGHT HALF TWIST THROTTLE
This model is intended for installation on the right side of the handlebars, it is fitted with a matching plug for the BBS02 Kit, or SM3 to match the CA3.

LEFT TYPE 2 THUMB THROTTLE
This is a new style of thumb throttle, intended for installation on the left side of the handlebars, it is fitted with matching plugs for the BBS02 Kit or SM3 for the CA3.

RIGHT (TYPE 2) THUMB THROTTLE
This is a new style of thumb throttle, intended for installation on the right side of the handlebars, it is fitted with matching plugs for the BBS02 Kit or SM3 for the CA3.
A simple, low cost but strong mechanical ebrake.

The HWBS Sensor allows any mechanical brake (with cable, not suitable for hydraulic brake) to be used as an ebrake. No need to swap brake levers, keep your existing levers. Sold as a single unit, not a pair.

Note: May require some small mods to your eisting ebrake connnection, as this sensor uses 3 wires: 5V, signal and 0V. An adaptor to connect the HWBS to an Infineon is available as an option (requires a small mod to the Infineon controller wiring). They are also now available with matching Higo Plug for BBS01/02 kits. Cable length is 1.5m.
3 SPEED SWITCH FOR INFINEON CONTROLLER

3 speed switch for use with our Infineon controllers
