RS775 GARDENING MOTOR
Introduction

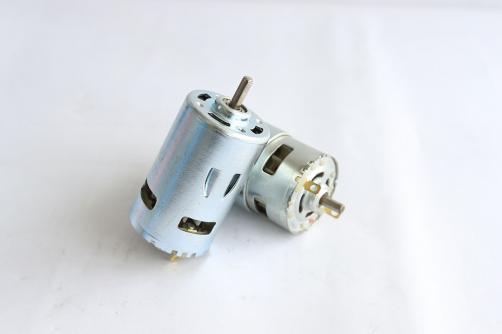

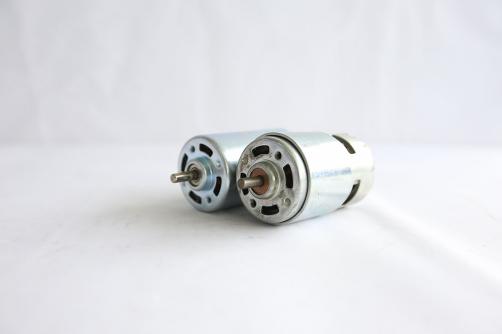

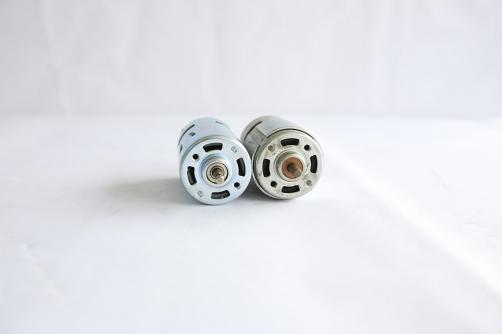

RS-775 high torque dc motor.

Applications
Power tools, office automation equipments

Specification
The following parameters are for reference only, we can customize parameters according to customers’
requirements.

Model Voltage (V) No Load At Maxi. Efficiency Stall
Operating Range Nominal Speed
(rpm)
Current
(A)
Speed
(rpm)
Current
(A)
Torque
(gcm)
Output
(W)
Torque
(gcm)
Current
(A)
RS-775SH-8013 DC 6-12V DC 12V 22000 3.0 18760 15.75 1028 198.0 8540 110.3
RS-775SH-5520 DC 12-24V DC 24V 21000 1.7 18410 10.72 962 181.9 7200 68.1
RS-775SH-9008 DC 7.2-12V DC 7.2V 14600 3.2 12310 20.05 816 103.2 5190 108.7
RS-775SH-9009 DC 12-24V DC 12V 21000 2.8 18050 21.07 1046 193.9 8225 143.7
