RS750 ELECTRICAL TOOL MOTOR
Introduction

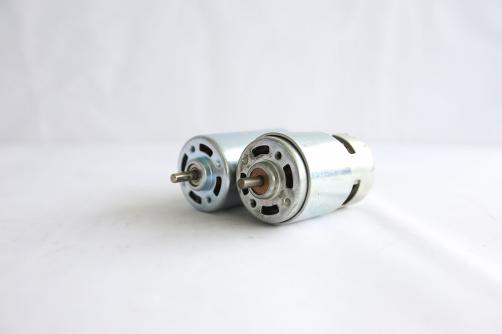

RS-750H/755H small dc motor
high torque, light weight, small dissipation.

Application
For toy, power tool, vacuum cleaner, air pump and so on

Specifications

The following parameters are for reference only, we can customize parameters according to customers’ requirements.


Model Voltage (V) No Load At Maxi. Efficiency Stall
Operating Range Nominal Speed
(rpm)
Current
(A)
Speed
(rpm)
Current
(A)
Torque
(gcm)
Output
(W)
Torque
(gcm)
Current
(A)
RS-760-PH-4570 6.0~15.0 12 7500 0.35 6683 2.80 349 23.92 3150 22.50
RS-755PH-2997 6.0~30.0 24 5200 0.25 4393 1.36 473 21.31 3050 7.40
RS-755PH-5535 6~20.0 18 11200 1.30 9496 7.30 910 88.63 5990 40.50
