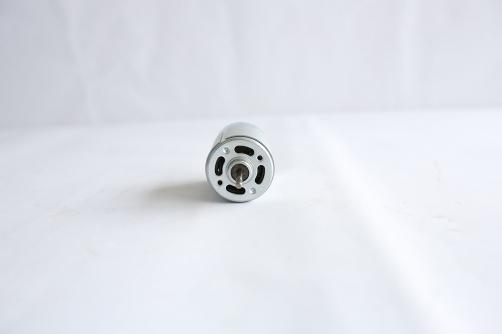

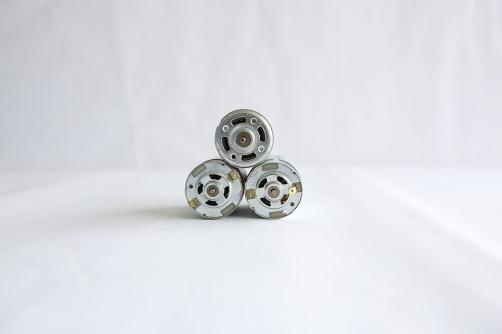

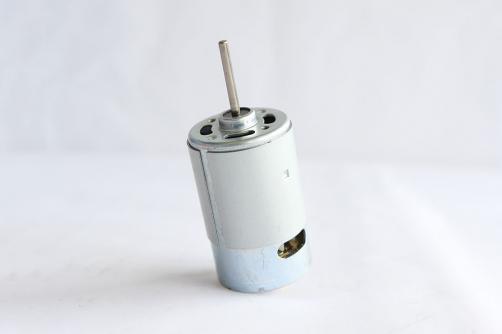

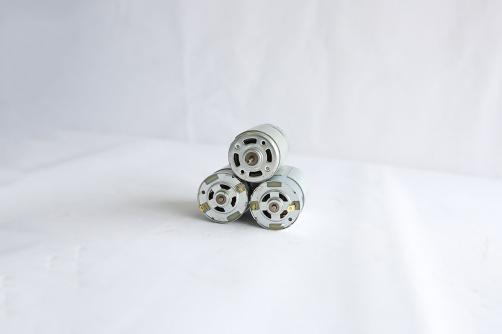

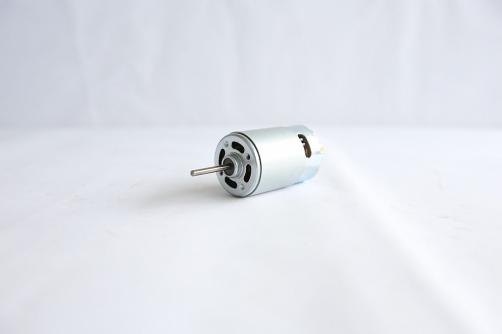

RS550 ELECTRICAL TOOL MOTOR
Introduction
RS550 high torque high rpm air compressor motor, mini electric motor for fan Quality Choice.

Applications
Air compressor, drill, garden tools and water pump.

Specifications

The following parameters are for reference only, we can customize parameters according to customers’ requirements.


Model Voltage (V) No Load At Maxi. Efficiency Stall
Operating Range Nominal Speed
(rpm)
Current
(A)
Speed
(rpm)
Current
(A)
Torque
(gcm)
Output
(W)
Torque
(gcm)
Current
(A)
RS-550SH-9511 DC 3-6 DC 4.5 18000 3 15200 16 350 55 2187 86
RS-550SH-15230 DC 12-28 DC 24 5200 0 4300 0 150 7 882 2
RS-550SA-5036 DC 6-15 DC 12 16500 1 14000 5 350 50 2310 29
RS-550SA-25200 DC 12-24 DC 24 5800 0 5100 1 225 12 1864 4
RS-550PC-7524 DC 6-12 DC 12 20600 1 18180 10 503 94 4300 77
