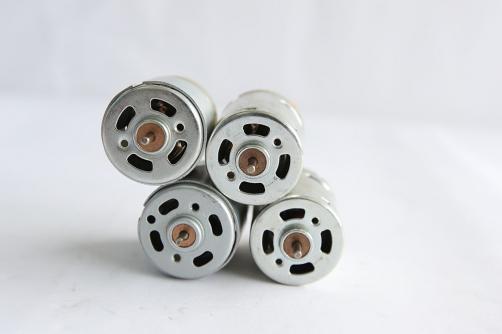

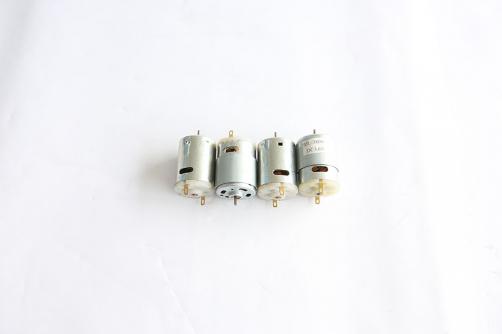

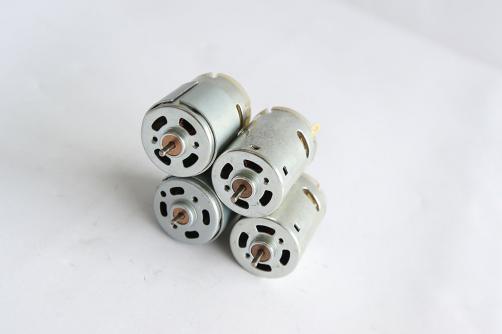

RS380/RS385 ELECTRICAL TOOL MOTOR
Introduction
12V Micro DC Motor for vending machines(RS-385)
Diameter: 27.7mm; length: 37.8mm
With good quality, reliable performance and high torque
ROHS

Applications
For vending machines.

Specifications

The following parameters are for reference only, we can customize parameters according to customers’ requirements.


Model Voltage (V) No Load At Maxi. Efficiency Stall
Operating Range Nominal Speed
(rpm)
Current
(A)
Speed
(rpm)
Current
(A)
Torque
(gcm)
Output
(W)
Efficiency
(%)
Torque
(gcm)
HL-380P-7602 2.0~6.0 2.4 15400 1.6 13500 6.50 80.0 7.84 71.10 6487.5
HL-380P-6611 2.4~6.0 3.6 15600 1.2 11800 5.50 110.0 13.32 67.30 451.6
HL-380P-31049 6.0~24 12.0 8100 0.15 6700 0.65 74.0 5.09 65.20 429
HL-380P-3827 3.0~9.0 6.0 9850 0.35 7850 1.00 50.0 4.03 67.20 246.3
HL-380P-4229 6.0~12.0 12.0 23800 0.6 19600 2.50 110.0 22.10 73.70 623.5
HL-380P-3256 12.0~30.0 24 12000 0.11 9900 0.50 80.0 8.12 67.60 457.2
