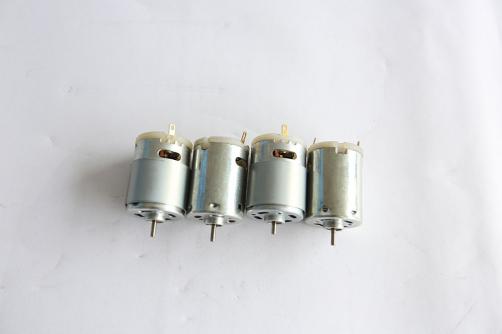

RS-360/RS-365 HOME APPLIANCE MOTOR
Introduction
Carbon brush DC motor
Diameter: 27.5mm; length 32.5mm; shaft 2.3mm
Voltage: 2.4~40V
No load Speed: 4000~25000r.p.m
Output:1.5~35W

Application

Fit for hair dryer, massager, vibrator, water pump, vending machine, popcorn maker, annunciator, drill & screw driver, egg mixer, etc.


Specification

The following parameters are for reference only, we can customize parameters according to customers’ requirements.


Model Voltage
(V)
No Load At Maxi. Efficiency Stall
Speed
(rpm)
Current
(A)
Speed
(rpm)
Current
(A)
Torque
(gcm)
Output
(W)
Efficiency
(%)
Torque
(gcm)
Current
(A)
RS360-4045 4.8 15800 0.66 13370 3.63 70 9.6 55.1 455 19.97
RS365-2460 12 17200 0.29 14200 1.37 69.8 10.17 61.8 400 6.48

Model Voltage (V) No Load At Maxi. Efficiency Stall
Operating Range Nominal Speed
(rpm)
Current
(A)
Speed
(rpm)
Current
(A)
Torque
(gcm)
Output
(W)
Efficiency
(%)
Torque
(gcm)
RS-360S-4528 1.5~6.0 2.4 11000 1.1 8500 2.60 42.0 3.66 58.7 156
RS-360S-3548 2.4~9.0 9 25000 0.8 20500 3.85 88.0 18.52 53.4 500
RS-360S-3165 1.2~6.0 3.6 8500 0.39 6800 1.62 50.0 3.49 59.8 260
RS-360S-25110 3.0~15.0 6 8400 0.22 6900 1.05 55.0 3.90 61.8 30
RS-360S-10500 9.0~30.0 24 7200 0.055 5600 0.20 46.0 2.64 55.1 20
RS-365S-3133 2.4~9.0 4.5 11500 0.45 9300 1.81 50.0 4.77 58.6 240
RS-365S-2840 3.0~12.0 12 24000 0.47 19800 2.24 75.0 15.24 56.7 430
RS-365S-2172 6.0~24.0 20 22000 0.28 18600 1.40 100.0 19.09 68.2 365
RS-365S-1980 6.0~24.0 24 24000 2 20800 1.35 95.0 20.28 62.6 500
RS-365S-10225 6.0~36.0 24 8100 0.065 6200 0.22 43.0 2.74 51.8 180
