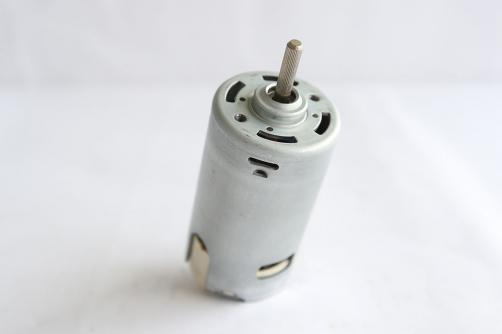

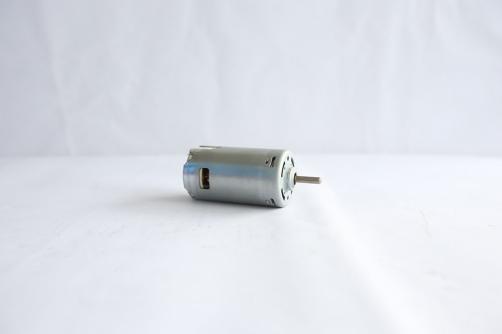

HL7724 ELECTRICAL TOOL MOTOR
HL7724
1) 42mm high voltage RS-7724 dc motor
Encoder possible
Internal capacitors
Voltage and speed adjustment by winding change
Modification of shaft length
Modification of shaft configuration (flat, hole, knurling, rear shaft etc.)
Assembly of gears, vibrators, pulley, etc.
Ball bearing available.


2) other customization of  42mm high voltage RS-7712 dc motor

Metal end cover or plastic end cover


3) slots or 5 slots rotors, rotor can be oblique.

Motor rotation: CW or CCW
Motor Flux ring thinkness can be made by special.
Motor Connector can be available.

Specification

The following parameters are for reference only, we can customize parameters according to customers’ requirements.


Model Voltage (V) No Load At Maxi. Efficiency Stall
Operating Range Nominal Speed
(rpm)
Current
(A)
Speed
(rpm)
Current
(A)
Torque
(gcm)
Output
(W)
EFF
(%)
Torque
(gcm)
RS-7524SM-12130 100-120 220
CONSTANT
22500 0.25 17000 0.88 706 127.0 51.7 3200
RS-7724SM-09215 90-150 110
CONSTANT
3000 0.05 2300 0.17 366 8.7 52.0 1500
RS-7724SM-17116 100-240 230
CONSTANT
18200 0.13 15680 0.80 900 145.0 64.2 6500
RS-7724PM-7AC11 230-280 230
CONSTANT
20500 0.30 19000 0.60 750 155.0 55.2 5000
